Fill stations

Design fully enclosed to contain a cylinder explosion or a hose failure.

FILL STATION "DF" NFPA 1901 SERIES

j-ffs-df3
j-ffs-df3-side
MODELFILL POINTSFILL TYPEFILL PRESSUREWEIGHTSIZE
J-FFS-DF2-22SCBA2216/3000 PSI275 KG142'' x 60'' x 72''
J-FFS-DF2-42SCBA4500 PSI275 KG142'' x 60'' x 72''
J-FFS-DF3-23SCBA2216/3000 PSI325 KG142'' x 60'' x 88''
J-FFS-DF3-43SCBA4500 PSI325 KG142'' x 60'' x 88''
J-FFS-DF4-24SCBA2216/3000 PSI375 KG142'' x 60'' x 114''
J-FFS-DF4-44SCBA4500 PSI375 KG142'' x 60'' x 114''

FILL STATION "D" NFPA 1901 SERIES

j-ffs-d4
j-ffs-d4-open
MODELFILL POINTSFILL TYPEFILL PRESSUREWEIGHTSIZE
J-FFS-D2-22SCBA2216/3000 PSI650 KG175'' x 86'' x 97''
J-FFS-D2-42SCBA4500 PSI650 KG175'' x 86'' x 97''
J-FFS-D3-23SCBA2216/3000 PSI660 KG175'' x 86'' x 97''
J-FFS-D3-43SCBA4500 PSI660 KG175'' x 86'' x 97''
J-FFS-D4-24SCBA2216/3000 PSI670 KG175'' x 86'' x 97''
J-FFS-D4-44SCBA4500 PSI670 KG175'' x 86'' x 97''
J-FFS-D6-26SCBA2216/3000 PSI700 KG175'' x 86'' x 125''
J-FFS-D6-46SCBA4500 PSI700 KG175'' x 86'' x 125''
J-FFS-D8-28SCBA2216/3000 PSI720 KG175'' x 86'' x 125''
J-FFS-D8-48SCBA4500 PSI720 KG175'' x 86'' x 125''
J-FFS-D10-210SCBA2216/3000 PSI830 KG175'' x 86'' x 125''
J-FFS-D10-410SCBA4500 PSI830 KG175'' x 86'' x 125''
J-FFS-D12-212SCBA2216/3000 PSI850 KG175'' x 86'' x 125''
J-FFS-D12-412SCBA4500 PSI850 KG175'' x 86'' x 125''

FILL STATION FILL-KATMD "D" NFPA 1901 SERIES

fill-kat-d8
fill-kat-d8-open
MODELFILL POINTSFILL TYPEFILL PRESSUREWEIGHTSIZE
FILL-KAT-D22SCBA2216, 3000 OR 4500 PSI650 KG173'' x 97'' x 86''
FILL-KAT-D33SCBA2216, 3000 OR 4500 PSI660 KG173'' x 97'' x 86''
FILL-KAT-D44SCBA2216, 3000 OR 4500 PSI670 KG173'' x 97'' x 86''
FILL-KAT-D66SCBA2216, 3000 OR 4500 PSI700 KG173'' x 137'' x 86''
FILL-KAT-D88SCBA2216, 3000 OR 4500 PSI720 KG173'' x 137'' x 86''
FILL-KAT-D1010SCBA2216, 3000 OR 4500 PSI830 KG173'' x 178'' x 86''
FILL-KAT-D1212SCBA2216, 3000 OR 4500 PSI850 KG173'' x 178'' x 86''

FILL STATION FT & FTS SERIES

J-FT-1

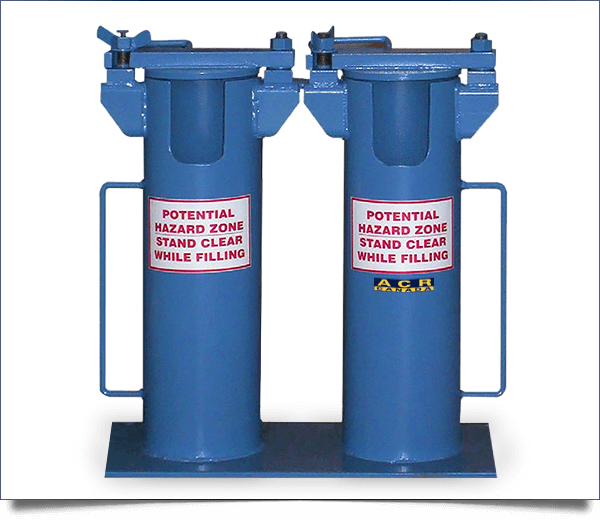

J-FT-2-closed
MODELFILL POINTSFILL TYPEFILL PRESSUREWEIGHTSIZE
J-FT-11SCBA2216, 3000 OR 4500 PSI65 KG102'' x 40'' x 40''
J-FT-22SCBA2216, 3000 OR 4500 PSI90 KG102'' x 80'' x 40''
J-FTS-11SCUBA3000 PSI65 KG102'' x 40'' x 40''
J-FTS-22SCUBA3000 PSI90 KG102'' x 80'' x 40''
*Technical specifications available on our website are subject to change without notice. Contact us to validate the specifications.
