Air-katTM Series

Air-KatTM series is available in 3 and 4 stages with a maximum pressure of 5000 to 7000psi1.

3 STAGES COMPRESSOR SYSTEM - AIR-KATTM 5000 PSI SERIES

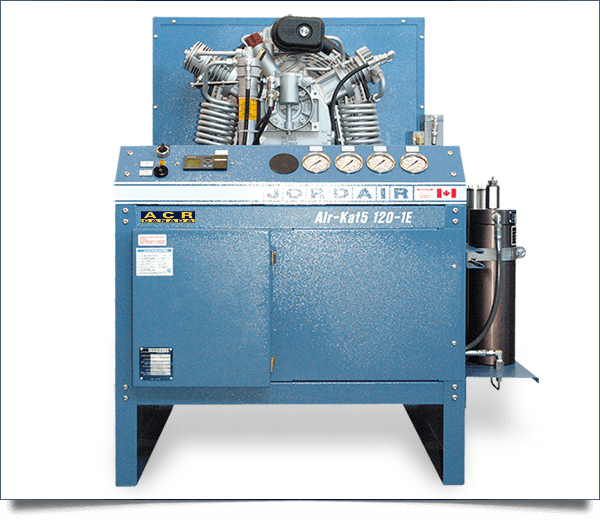

air-kat5-120-1e
air-kat5-120-1es
MODELSCFMPOWERMOTORFILTRATIONCAPACITYWEIGHT ( KG )SIZE (H X D X W)
AIR-KAT5-100-1E7.05 H.P.ELEC. 1 PHASEJBP41-6300-4-533,800 FT3220120 x 85 x 99
AIR-KAT5-100-3E7.05 H.P.ELEC. 3 PHASESJBP41-6300-4-533,800 FT3220120 x 85 x 99
AIR-KAT5-120-1E10.57.5 H.P.ELEC. 1 PHASEJBP41-6300-4-533,800 FT3230120 x 85 x 99
AIR-KAT5-120-3E10.57.5 H.P.ELEC. 3 PHASESJBP41-6300-4-533,800 FT3230120 x 85 x 99
AIR-KAT5-121-1E12.510 H.P.ELEC. 1 PHASEJBP41-6300-4-533,800 FT3240120 x 85 x 99
AIR-KAT5-121-3E12.510 H.P.ELEC. 3 PHASESJBP41-6300-4-533,800 FT3240120 x 85 x 99

4 STAGES COMPRESSOR SYSTEM - AIR-KATTM 5000 PSI SERIES

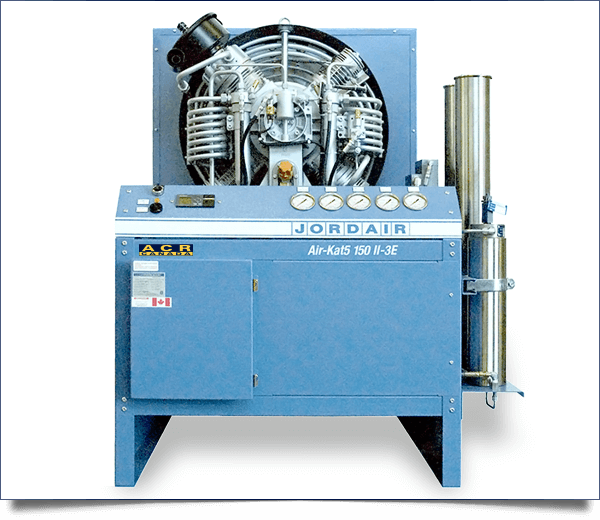

air-kat5-150-ii-3e
air-kat5-150-ii-3es
MODELSCFMPOWERMOTORFILTRATIONCAPACITYWEIGHT ( KG )SIZE (H X D X W)
AIR-KAT5-12-1E11.57.5 H.P.ELEC. 1 PHASEJBP41-6300-4-533,800 FT3320100 x 88 x 137
AIR-KAT5-12-3E11.57.5 H.P.ELEC. 3 PHASESJBP41-6300-4-533,800 FT3320100 x 88 x 137
AIR-KAT5-1214-1E15.110 H.P.ELEC. 1 PHASEJBP41-6300-4-533,800 FT3320100 x 88 x 137
AIR-KAT5-1214-3E15.110 H.P.ELEC. 3 PHASESJBP41-6300-4-533,800 FT3320100 x 88 x 137
AIR-KAT5-151-3E24.415 H.P.ELEC. 3 PHASESJBP41-6300-4-552,500 FT3380110 x 98 x 152.5
AIR-KAT5-150-3E28.115 H.P.ELEC. 3 PHASESJBP41-6300-4-552,500 FT3380110 x 98 x 152.5
AIR-KAT5-180-3E35.720 H.P.ELEC. 3 PHASESJBP41-6300-4-5113,000 FT3400110 x 98 x 152.5
AIR-KAT5-220-3E46.630 H.P.ELEC. 3 PHASESJBP41-6300-4-5173,000 FT3650115 x 115 x 180

COMPRESSOR SYSTEM - AIR-KATTM 6000 PSI SERIES

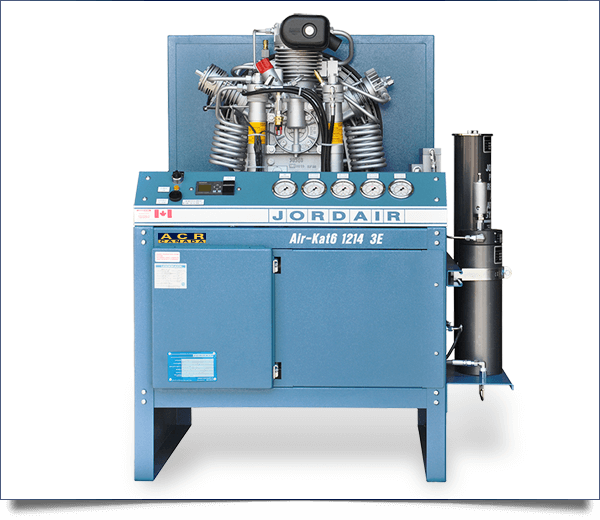

air-kat6-1214-3e
air-kat6-1214-3es
MODELSCFMPOWERMOTORFILTRATIONCAPACITYWEIGHT ( KG )SIZE (H X D X W)
AIR-KAT6-100-1E5.85 H.P.ELEC. 1 PHASEJBP41-6300-4-633,800 FT3220120 x 82 x 82
AIR-KAT6-100-3E5.85 H.P.ELEC. 3 PHASESJBP41-6300-4-633,800 FT3220120 x 82 x 82
AIR-KAT6-120-1E9.07.5 H.P.ELEC. 1 PHASEJBP41-6300-4-633,800 FT3230120 x 82 x 82
AIR-KAT6-120-3E9.07.5 H.P.ELEC. 3 PHASESJBP41-6300-4-633,800 FT3230120 x 82 x 82
AIR-KAT6-12-1E10.77.5 H.P.ELEC. 1 PHASEJBP41-6300-4-633,800 FT3320120 x 82 x 82
AIR-KAT6-12-3E10.77.5 H.P.ELEC. 3 PHASESJBP41-6300-4-633,800 FT3320120 x 82 x 82
AIR-KAT6-1214-1E15.110 H.P.ELEC. 1 PHASEJBP41-6300-4-633,800 FT3320120 x 82 x 82
AIR-KAT6-1214-3E15.110 H.P.ELEC. 3 PHASESJBP41-6300-4-633,800 FT3320120 x 82 x 82
AIR-KAT6-1511-3E24.215 H.P.ELEC. 3 PHASESJBP41-6300-4-652,500 FT3380138 x 82 x 92
AIR-KAT6-181-3E28.625 H.P.ELEC. 3 PHASESJBP41-6300-4-6113,000 FT3400138 x 82 x 92
AIR-KAT6-220-3E41.130 H.P.ELEC. 3 PHASESJBP41-6300-4-6173,000 FT3650168 x 125 x 118
*Technical specifications available on our website are subject to change without notice. Contact us to validate the specifications.
1For the 7000psi series specifications, please contact one of our representatives.
